Gantry Heavy Duty Double Column Machining Center Large Casting S-L3015
Introduce
The overall layout of the machine tool is fixed in the gantry frame structure, and the table is moved in the X axis on the base; the column is fixed at both ends of the base, and the beam of the headstock on the column is moved up and down by Z axis.
The machine is fixed by gantry frame and the working table moves. The basic parts are made of high quality resin sand molding and high strength cast iron, so that the machine can get high rigidity and stable precision. The main castings are analyzed by finite element method and the steel bars are arranged reasonably, which fully meet the needs of high torque cutting of machine tools.
Product Characteristics
Gantry beam and support the overall casting strong rigidity, workbench fixed directly put on the ground, and guide rail installation on the lathe bed work bench, guide datum and a workbench surface processing, high precision of installation, greatly improving the bearing capacity of the machine tool, than the workbench mobile gantry spear bed bed short half of dozens of times higher bearing capacity, less casting, machine low cost saving cost covers an area of a times shorter, because save workshop space is small gantry drive motor power to save electricity costs, gantry adopts double synchronous motor drive, using fanuc 0i MF system realize the three axes linkage.
APPLICATION AREA
CNC grantry processing center using accessories to achieve a variety of plates, shells, molds and other complex parts in a clamping process to complete a variety of five processing.The machine tool is equipped with 24T Taiwan Xiangtian magazine, which can realize the function of automatic tool change and improve the processing efficiency to a greater extent.CNC grantry processing center, a unique device to improve the processing ability to play the performance of machine tools.
it is mainly used for processing steel, steel casting, rust iron pieces and other workpiece CNC milling measurement, hall hole, drilling, tapping, etc.Suitable for machinery, iron, energy, automobile, aerospace, weapons, ships and other industries.
PRODUCT PARAMETERS
| Item | Unit | S-L3015 |
| X/Y/Z axis Travel | mm | 3000/1500/800 |
| Door Width | mm | 1500 |
| Spindle Nose to Work table | mm | 70-870 |
| 3 Axis Guideway | / | X/Y: roller track, Z: rectangular slide track |
| Work table Size | mm | 3000X1100(1300) |
| Max Loading | kg | 5000 |
| T-slot (numbe r-size*distance) | mm | 7-22X150 |
| 3 Axis Rapid Move Speed | M/min | 10/10/10 |
| Cutting Feed Speed | mrri/min | 0-10000 |
| Transmission Type | / | Belt type/straight knot type/gear type |
| Spindle Rotation Speed | rpm | 6000 |
| Spindle Spec | / | BT50 |
| Spindle Motor | kw | 22 |
| 3 Axis Motor | kw | 7/4.5/4.5 |
| Position Precision | mm | ±0.005/300 |
| Repeat Position Precision | mm | ±0.003 |
| Machine Weight | kg | 24000 |
| Machine Size | mm | 9500 X 4000 X 4200 |
FAQ
Q1: Can I have your quotation?
A: First, please offer us the information of your material size, without these parameter, we are not able to recommend you the suitable machine.
Q 2: How to operate and maintain the machine?
A : First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q 3: Where is your factory located ? How can I visit it ?
A : Our factory is located in shenzhen city,guangdong province,China. You can fly to shenzhen air port, we will pick you up.
Q 4 :What’s dimension of your workpiece ?
A : In order to configure suitable size machine for you. we should get your info. We can professional design as your requirement.
Q 5: Can you guarantee you quality?
A : Of course. We are the ferrous metal and non-ferrous metal foundry production series sand core machine manufacture factory ,more important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Product deails
Product Tags:
|
|

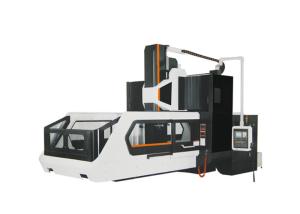

Large Casting Double Column Gantry Machining Center Images
|
