heavy duty double column machining center wiith various door width s-L6027
Introduce
The overall layout of the machine tool is fixed in the gantry frame structure, and the table is moved in the X axis on the base; the column is fixed at both ends of the base, and the beam of the headstock on the column is moved up and down by Z axis.
Product Characteristics
1.X/Y axis adopts heavy roller linear guide rail with high precision.
2. Z-axis adopts extra-wide square guide rail with strong seismic capability.
3.Z axis adopts double weight of hydraulic and nitrogen to ensure the stability when moving up and down at high speed.
4. Equipped with double helix and chain chip eliminator, automatic cleaning waste residue.
5. A variety of door width can meet a variety of processing needs.
APPLICATION AREA
It's mainly applicable to the aviation, aerospace, automotive, military, energy, information, mold and other industries parts processing. It is characterized by high speed, high precision, high flexibility and environmental protection. Its performance index and precision index completely accord with the national standard. Through modular design, the products can be serialized and customized according to the market demand, and its good performance and price ratio is the best choice for customers at home and abroad.
PRODUCT PARAMETERS
| Item | Unit | S-L6027 |
| X/Y/Z axis Travel | mm | 6200/2700/1000(1250) |
| Door Width | mm | 2700 |
| Spindle Nose to Work table | mm | 250-1250 |
| 3 Axis Guideway | / | X/Y: roller track, Z: rectangular slide track(Optional triaxial roller rail) |
| Work table Size | mm | 6000X2500 |
| Max Loading | kg | 20000 |
| T-slot (numbe r-size*distance) | mm | 13-22X180 |
| 3 Axis Rapid Move Speed | M/min | 8/8/8 |
| Cutting Feed Speed | mm/min | 0-10000 |
| Transmission Type | / | Belt type/straight knot type/gear type |
| Spindle Rotation Speed | rpm | 6000 |
| Spindle Spec | / | BT50 |
| Spindle Motor | kw | 22/26 |
| 3 Axis Motor | kw | 9/7/7 |
| Position Precision | mm | ±0.01/300 |
| Repeat Position Precision | mm | ±0.01 |
| Machine Weight | kg | 56000 |
| Machine Size | mm | 15500 X 6000 X 5000 |
Standard Configuration
1. FANUC System
2. Heat exchaner in electric control cabinet
3. Water tank cooling device
4. Manual pulse generator
5. Automatic lubrication device
6. Workong lamp
7. Outer protective cover
8. Three-color warning lamp
9. Spindle blowing device
10. RS-232 standard output interface
11.Handle air gun
12. LCD
13. Water gun
14. Tool and tool box
15. Electric control cabinet
16. Operation manual
17. Transformer
Optional Configuration
1. Mitsubishi system
2. ATC (Manipulator)
3. Spindle oil cooling device
4. Water through spindle center device
5. Disk type oil-water separator
6. CNC rotation worktable (the 4th axis)
7. Air conditioner in electric control cabinet
8. fully-enclosed optical scale detecting system
9. Automatic tool length measuting system
10. Manual / Semi*autoatic right-angle head
FAQ
Q: Can you do customized orders?
A:YES, ODM/OEM are available according to your design and requirements.
Q: What is the MOQ?
A:Only one set for CNC machining center.
Q: How long is the warranty?
A:We provide one year's warranty and we also provide free lifelong remote support.
Q: How long is your delivery time?
A:Normally 30 days after order confirmed. If we have stock, we can deliver within 7 days
Product deails
Product Tags:
|
|

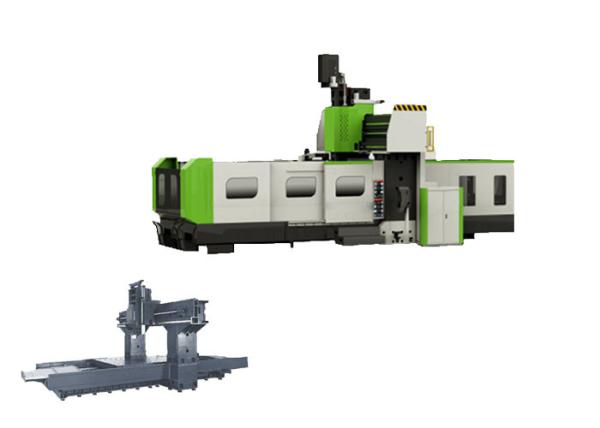

BT50 6000rpm Double Column Machining Center Images
|
